QJRB800-1 800 kg palletizing robot
The QJRB800-1 is a 4-axis QJAR industrial robot for palletizing, with 800 kg of wrist payload and 3,159 mm of maximum reach.
| Payload | 800 kg |
|---|---|
| Reach | 3,159 mm |
| Axes | 4 |
| Repeatability | ±0.5 mm |
| Mass | 2,550 kg |
Technical description
About the QJRB800-1
The QJRB800-1 is a 4-axis QJAR industrial robot for palletizing, with 800 kg of wrist payload and 3,159 mm of maximum reach.
Giant model built specifically for high-load palletizing. According to the manufacturer, it is fast and stable, with all axes operating at low power output and a simple equipment setup that can use dedicated palletizing software.
At 800 kg, it has the highest payload among the range's palletizing robots.
Values and description as published in the manufacturer's datasheets. Configurations, options and certifications are confirmed in each cell design.
Manufacturer datasheet data
- Mounting
- On the floor
Maximum speed per axis
- J1
- 65 °/s
- J2
- 65 °/s
- J3
- 65 °/s
- J4
- 115 °/s
Applications
Typical QJRB800-1 applications

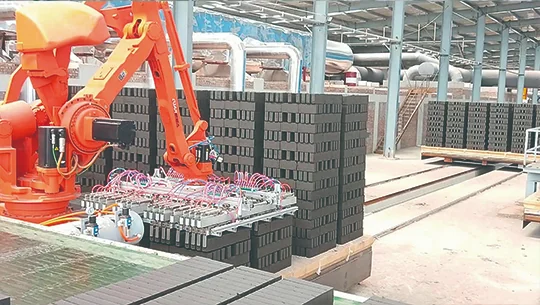

Processes the manufacturer lists for the QJRB800-1. The photos show installations with QJAR robots and illustrate the process, not this specific model.
FAQ
QJRB800-1 frequently asked questions
Answers taken from the datasheet published by the manufacturer.
What is the payload of the QJRB800-1?
The wrist payload of the QJRB800-1 is 800 kg, according to the manufacturer's datasheet.
What is the reach of the QJRB800-1?
The maximum reach of the QJRB800-1 is 3,159 mm.
How many axes does the QJRB800-1 have?
The QJRB800-1 is a 4-axis robot.
What is the repeatability of the QJRB800-1?
The positioning repeatability of the QJRB800-1 is ±0.5 mm.
How much does the QJRB800-1 weigh?
The robot mass is 2,550 kg, according to the manufacturer's datasheet.
Which applications is the QJRB800-1 suited to?
According to the manufacturer's datasheet, the QJRB800-1 covers high-load palletizing.
How is the QJRB800-1 mounted?
According to the manufacturer's datasheet, it is mounted on the floor.
