QJRB180-1 180 kg palletizing robot
The QJRB180-1 is a 4-axis QJAR industrial robot for palletizing, with 180 kg of wrist payload and 3,153.7 mm of maximum reach.
| Payload | 180 kg |
|---|---|
| Reach | 3,153.7 mm |
| Axes | 4 |
| Repeatability | ±0.5 mm |
| Mass | 1,400 kg |
Technical description
About the QJRB180-1
The QJRB180-1 is a 4-axis QJAR industrial robot for palletizing, with 180 kg of wrist payload and 3,153.7 mm of maximum reach.
Big-payload robot with high speed and stability and all axes operating at low power output. The equipment setup is simple and can use dedicated palletizing software. According to the manufacturer, it is widely used in the furniture, food and beverage and 3C electronics industries, for high-speed, high-precision palletizing, picking, packaging, handling, feeding and unloading.
Values and description as published in the manufacturer's datasheets. Configurations, options and certifications are confirmed in each cell design.
Manufacturer datasheet data
- Mounting
- On the floor
Maximum speed per axis
- J1
- 129 °/s
- J2
- 132 °/s
- J3
- 132 °/s
- J4
- 298 °/s
Applications
Typical QJRB180-1 applications

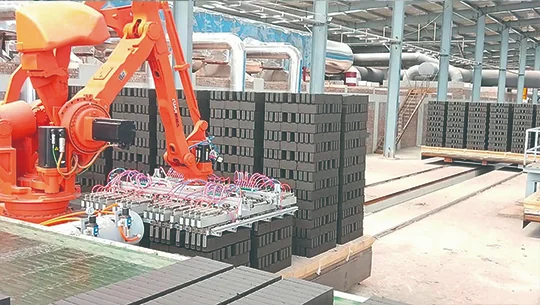

Processes the manufacturer lists for the QJRB180-1. The photos show installations with QJAR robots and illustrate the process, not this specific model.
FAQ
QJRB180-1 frequently asked questions
Answers taken from the datasheet published by the manufacturer.
What is the payload of the QJRB180-1?
The wrist payload of the QJRB180-1 is 180 kg, according to the manufacturer's datasheet.
What is the reach of the QJRB180-1?
The maximum reach of the QJRB180-1 is 3,153.7 mm.
How many axes does the QJRB180-1 have?
The QJRB180-1 is a 4-axis robot.
What is the repeatability of the QJRB180-1?
The positioning repeatability of the QJRB180-1 is ±0.5 mm.
How much does the QJRB180-1 weigh?
The robot mass is 1,400 kg, according to the manufacturer's datasheet.
Which applications is the QJRB180-1 suited to?
According to the manufacturer's datasheet, the QJRB180-1 covers palletizing, picking, packaging, handling and feeding and unloading.
How is the QJRB180-1 mounted?
According to the manufacturer's datasheet, it is mounted on the floor.
