Arc welding · QJAR range

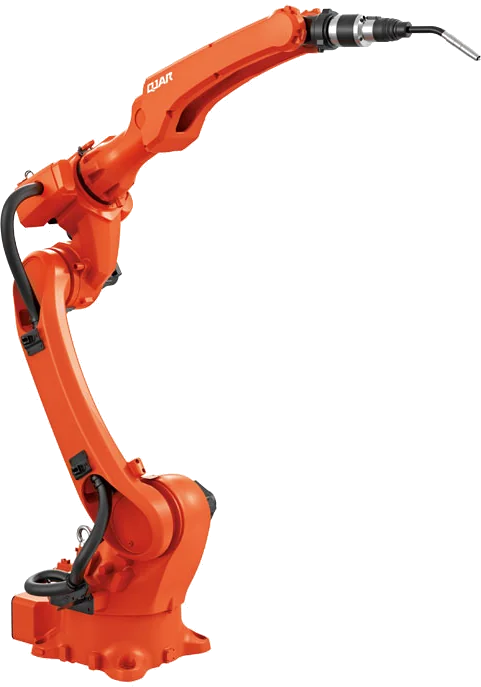

QJR6-2000H 6 kg arc welding robot
The QJR6-2000H is a 6-axis QJAR industrial robot for arc welding, with 6 kg of wrist payload and 2,014 mm of maximum reach.
| Payload | 6 kg |
|---|---|
| Reach | 2,014 mm |
| Axes | 6 |
| Repeatability | ±0.08 mm |
| Mass | 230 kg |
Technical description
About the QJR6-2000H
The QJR6-2000H is a 6-axis QJAR industrial robot for arc welding, with 6 kg of wrist payload and 2,014 mm of maximum reach.
According to the manufacturer, it is intended mainly for arc welding, with hollow arms and wrist and a built-in welding cable. It keeps the lightweight, compact structure, fast operation and high repeatability for quality-demanding welding.
At 2,014 mm, it has the longest reach among the range's arc welding robots.
Values and description as published in the manufacturer's datasheets. Configurations, options and certifications are confirmed in each cell design.
Manufacturer datasheet data
- Mounting
- On the floor or on a wall
Maximum speed per axis
- J1
- 189 °/s
- J2
- 189 °/s
- J3
- 189 °/s
- J4
- 360 °/s
- J5
- 320 °/s
- J6
- 974 °/s
Applications
Typical QJR6-2000H applications

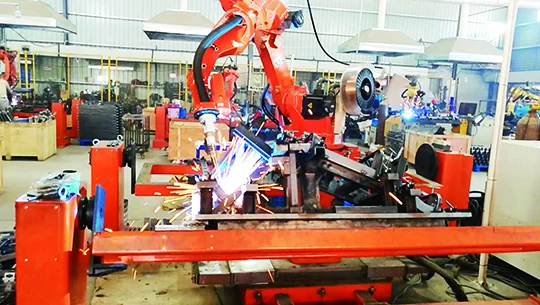

Processes the manufacturer lists for the QJR6-2000H. The photos show installations with QJAR robots and illustrate the process, not this specific model.
FAQ
QJR6-2000H frequently asked questions
Answers taken from the datasheet published by the manufacturer.
What is the payload of the QJR6-2000H?
The wrist payload of the QJR6-2000H is 6 kg, according to the manufacturer's datasheet.
What is the reach of the QJR6-2000H?
The maximum reach of the QJR6-2000H is 2,014 mm.
How many axes does the QJR6-2000H have?
The QJR6-2000H is a 6-axis robot.
What is the repeatability of the QJR6-2000H?
The positioning repeatability of the QJR6-2000H is ±0.08 mm.
How much does the QJR6-2000H weigh?
The robot mass is 230 kg, according to the manufacturer's datasheet.
Which applications is the QJR6-2000H suited to?
According to the manufacturer's datasheet, the QJR6-2000H covers arc welding.
How is the QJR6-2000H mounted?
According to the manufacturer's datasheet, it is mounted on the floor or on a wall.
